Collection PinMaps of Arduino friendly Boards

Post Reply
User avatar
rudi ;-)
Posts: 1729
Joined: Fri Nov 13, 2015 3:25 pm

Collection PinMaps of Arduino friendly Boards

Postby rudi ;-) » Tue Oct 11, 2016 1:17 am

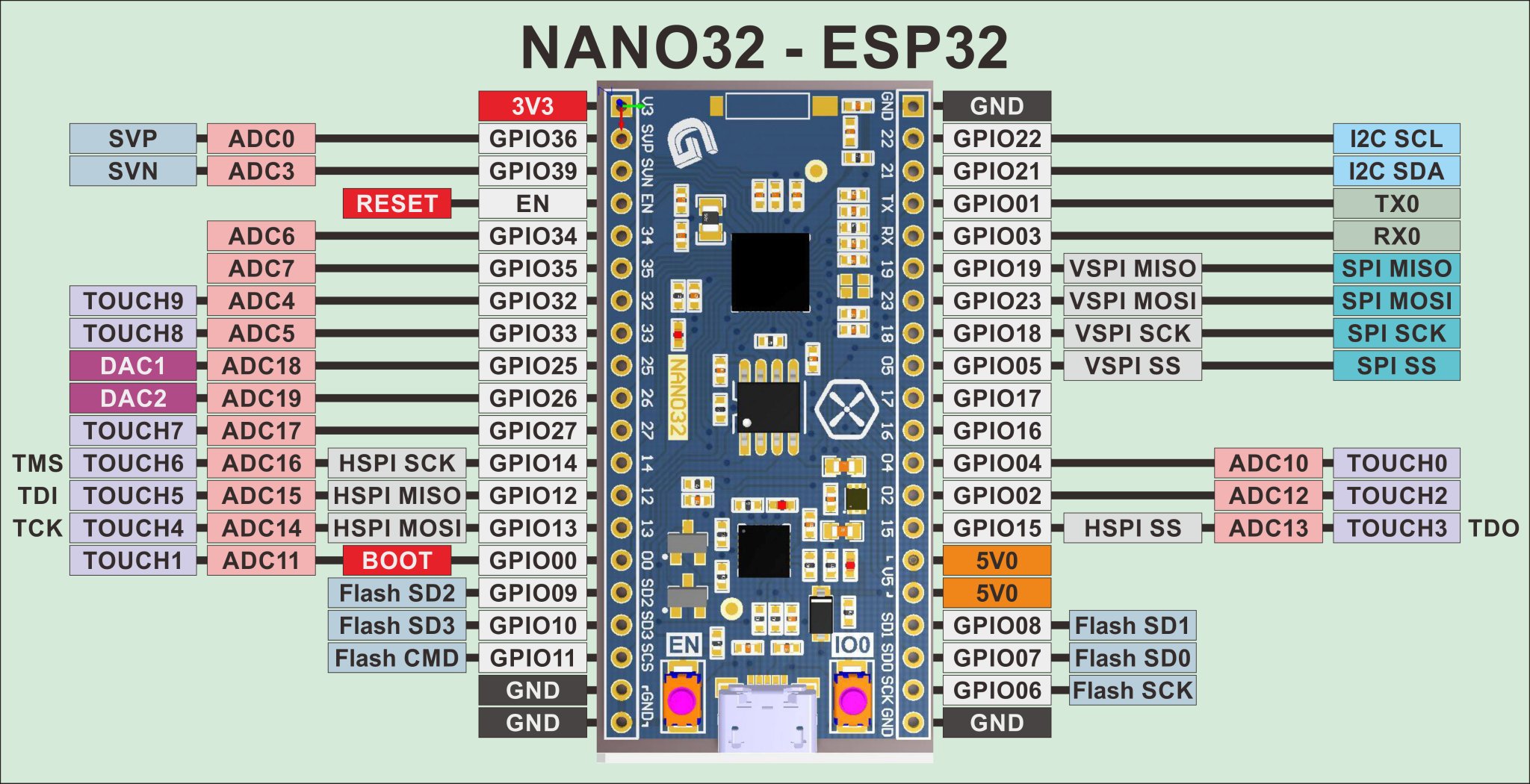

NANO32 IoT Development Board
Attachments
NANO32 IoT Development Board
Arduino ESP32 friendly
-------------------------------------
love it, change it or leave it.
-------------------------------------
問候飛出去的朋友遍全球魯迪
Top
uhrheber
Posts: 16
Joined: Sat Nov 12, 2016 12:07 pm

Re: Collection PinMaps of Arduino friendly Boards

Postby uhrheber » Sat Nov 12, 2016 12:28 pm

Sparkfun ESP32 Thing:

Top
ezezezwyj
Posts: 1
Joined: Wed Nov 23, 2016 9:31 am

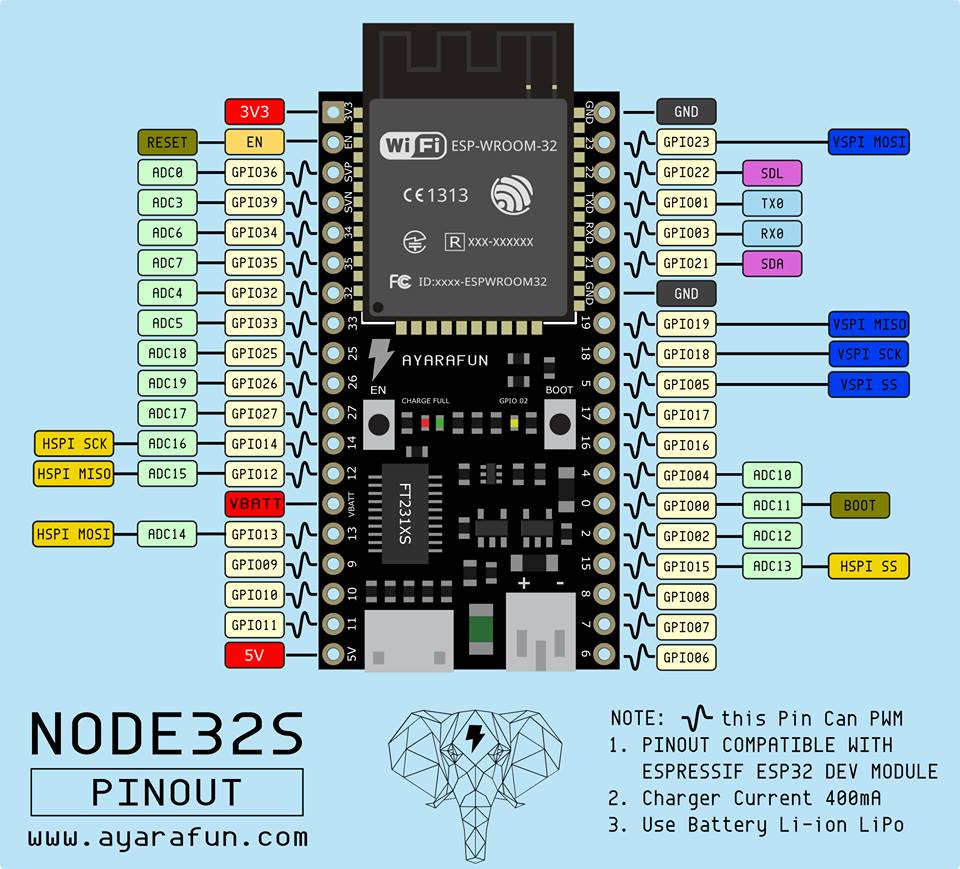

NODE32

Postby ezezezwyj » Wed Nov 23, 2016 9:34 am

Top
uhrheber
Posts: 16
Joined: Sat Nov 12, 2016 12:07 pm

Analoglamb ESP32 Development Board

Postby uhrheber » Thu Nov 24, 2016 7:54 am

Analoglamb ESP32 Development Board (cheapest I know of so far).

Top
uhrheber
Posts: 16
Joined: Sat Nov 12, 2016 12:07 pm

Noduino Quantum

Postby uhrheber » Thu Nov 24, 2016 8:01 am



Top
lamloei
Posts: 6
Joined: Wed Sep 21, 2016 7:15 pm

Re: Collection PinMaps of Arduino friendly Boards

Postby lamloei » Thu Nov 24, 2016 2:29 pm

Top
