Massage chair based on ESP32

[Hayden]

Project Overview

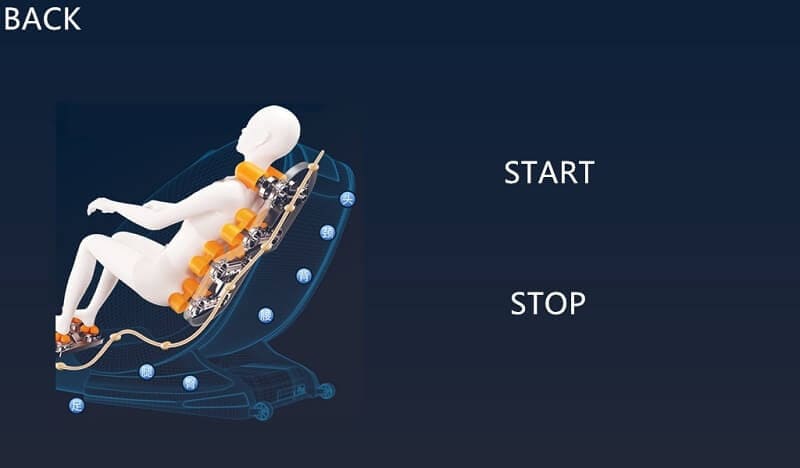

Here we do is a home massage chair application, when the LCD serial screen is powered on, a start interface will appear. After a short stay, it will jump to a specific interface. This interface is used to set our current time. When setting, a keyboard will pop up. After setting, click OK to enter the massage mode selection interface. Here, I have set three modes: head massage, back massage, and comprehensive mode. In the mode, the massage intensity can be set, the high, middle and low gears can be set, and the corresponding LED light will be used for intensity indication; the massage times can also be set, after reaching the set number, it will automatically stop; in the comprehensive model, the head and back will be massaged at the same time, and it can be turned off when it is not needed. These actions are through the STONE Touch Screen serial port screen to achieve command transmission.

Modules required for the project

① STONE Touch Screen；

② ESP32；

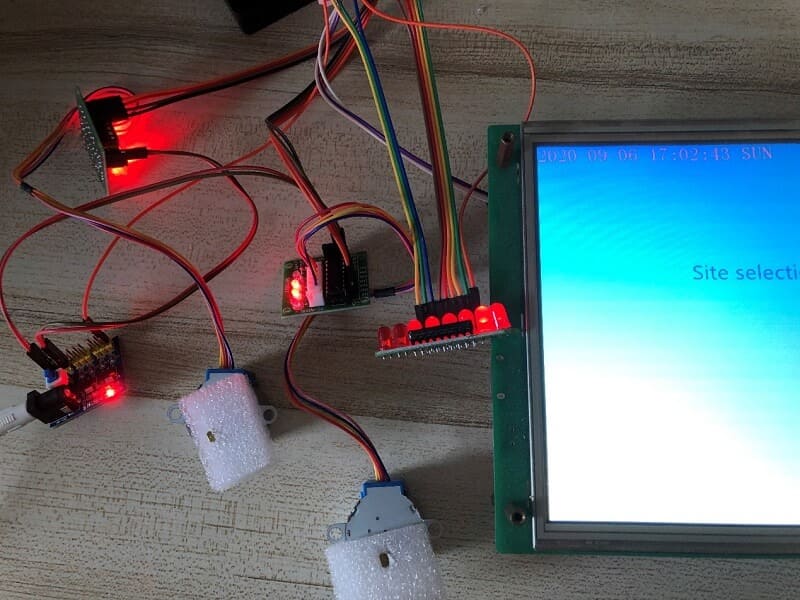

③ Stepper motor drive and module;

④ LED array module;

Connection


GUI design


part of code

Code: Select all

//HEAD

uint8_t   HeadGearHigh[9]       = {0xA5, 0x5A, 0x06, 0x83, 0x00, 0x0E, 0x01, 0x00, 0x03};

uint8_t   HeadGearMiddle[9]     = {0xA5, 0x5A, 0x06, 0x83, 0x00, 0x0E, 0x01, 0x00, 0x02};

uint8_t   HeadGearLow[9]        = {0xA5, 0x5A, 0x06, 0x83, 0x00, 0x0E, 0x01, 0x00, 0x01};



uint8_t   HeadTiming[9]         = {0xA5, 0x5A, 0x06, 0x83, 0x00, 0x11, 0x01, 0x00, 0x09};



uint8_t   HeadModeStart[9]    = {0xA5, 0x5A, 0x06, 0x83, 0x00, 0x19, 0x01, 0x41, 0x61};

uint8_t   HeadModeStop[9]     = {0xA5, 0x5A, 0x06, 0x83, 0x00, 0x24, 0x01, 0x46, 0x66};



//BACK

uint8_t   BackGearHigh[9]       = {0xA5, 0x5A, 0x06, 0x83, 0x00, 0x1A, 0x01, 0x00, 0x01};

uint8_t   BackGearMiddle[9]     = {0xA5, 0x5A, 0x06, 0x83, 0x00, 0x1A, 0x01, 0x00, 0x02};

uint8_t   BackGearLow[9]      = {0xA5, 0x5A, 0x06, 0x83, 0x00, 0x1A, 0x01, 0x00, 0x03};



uint8_t   BackModeStart[9]      = {0xA5, 0x5A, 0x06, 0x83, 0x00, 0x0C, 0x01, 0x42, 0x62};

uint8_t   BackModeStop[9]     = {0xA5, 0x5A, 0x06, 0x83, 0x00, 0x0D, 0x01, 0x43, 0x63};



//Integrated

uint8_t   IntegratedModeStart[9]= {0xA5, 0x5A, 0x06, 0x83, 0x00, 0x0F, 0x01, 0x44, 0x64};

uint8_t   IntegratedModeStop[9] = {0xA5, 0x5A, 0x06, 0x83, 0x00, 0x1F, 0x01, 0x45, 0x65};

Video demo

https://www.youtube.com/watch?v=iTImQIU5hNE
